Modern Design and Functionality

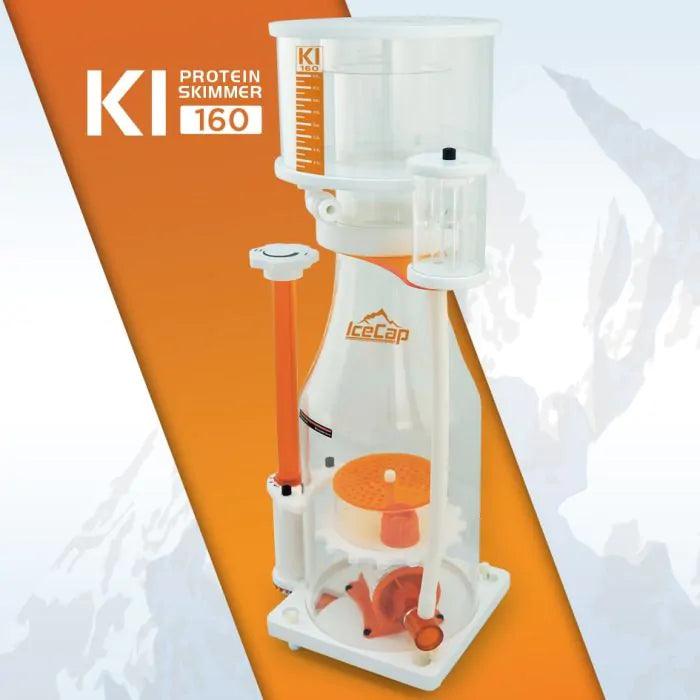

The IceCap K1 160 is a remarkably compact skimmer that offers a new level of refined filtration for marine aquariums ranging from 120 to 200 gallons. All aspects of the skimmer were implemented to surpass many challenges other skimmers on the market miss out on.

Compact & Built to Last

Master crafted from robust PVC and high-quality acrylic. All components are marine safe and refined in every aspect to provide the latest enhancements in foam fractionation and the highest in quality.

The elegant “Beer Bottle" curve of the skimmer body naturally stabilizes the air and water mix as they transition upward within the reaction chamber. An impressively compact footprint makes it the ideal candidate for tight sump applications. Every aspect of the skimmer disassembles completely for easy service.

Quiet Performance & Control

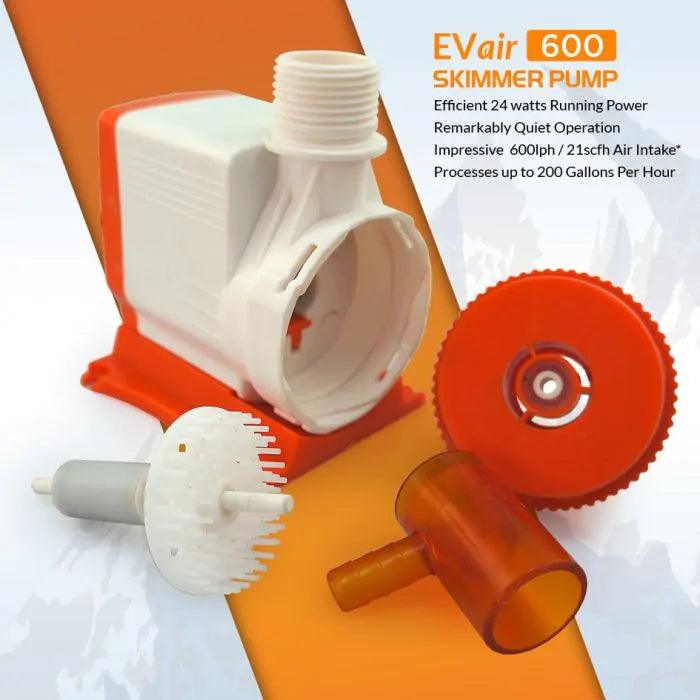

At the Core of the IceCap K1, you will find the EVair 600 skimmer pump built to be highly durable and packing a ton of efficient performance. It's easy grip and twist-Locking access to the pinwheel for easy service.

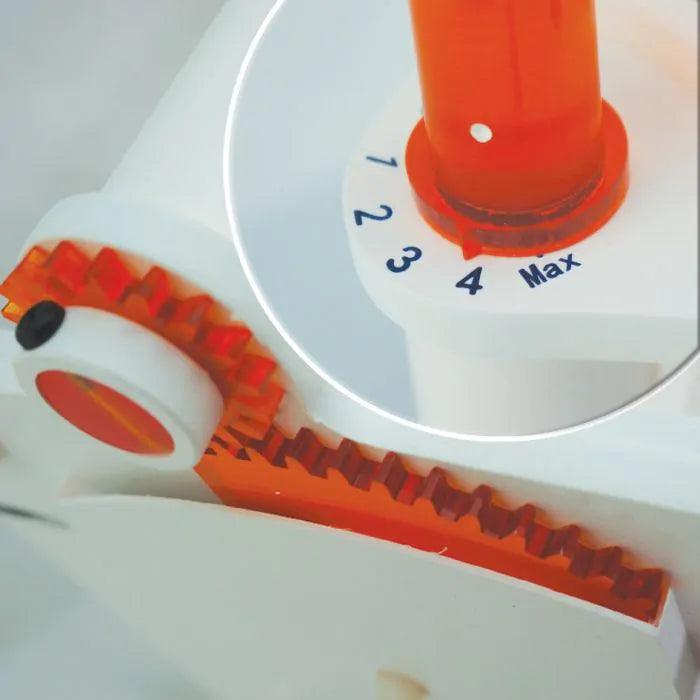

The pipeless output offers fine-tuning and trouble-free underwater outflow plus quiet operation. Our pipeless design not only saves on space but also allows the outgoing water to exit on the side of the skimmer and below the water surface providing splash-free circulation in the sump.

Located much lower in the reaction chamber, the unique bubble dispersing chamber offers a multi-stage diffusion of water, additional contact time for enhanced foam stability.

Bioload Handling

The bioload of an aquarium refers to its ability to process waste in proportion to tank volume. Protein skimmers work best when properly matched with the bioload of the system.

(EXCLUDING SUMP)

• 120 GALLONS
• 160 GALLONS
• 200 GALLONS

Impressive Performance - Remarkably Small Footprint

• Distinctive Turbulence Reducing Body
• Solid PVC & Acrylic Construction
• Bubble Dispersant Chamber
• Novel Pipeless Output Valve
• Efficient & Quiet Operation
• Disassembles Completely for Easy Cleaning & Maintenance
• In-Sump Installation Only

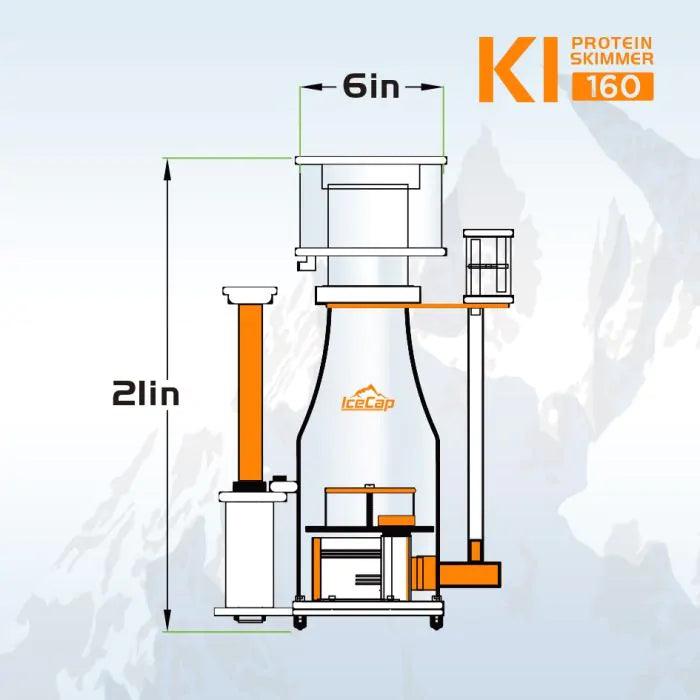

K1-160 Technical Specs

Skimmer Body: 6in
Footprint: 6.7in x 8.5in
Total Height: 20in
Cup Drain Size: 8mm ID / 12mm OD

Recommended Sump
Water Height: 7 - 10in

Pump Information

EVair 600 Pinwheel Pump
Power Consumption: 16watts
Air Draw: 600lph / 21scfh*
Water Draw: ~205gph
